The Finite Elements Method (FEM) versus traditional Methods (TM), in the estimation of settlement and modulus of soil reaction for foundation slabs design on soils with natural or man-made cavities

Análisis comparativo entre el método por elementos finitos (FEM) y el método clásico (MC) en la estimación de asientos y cálculo del coeficiente de balasto para el diseño de losas de cimentación en zonas afectadas por cavidades naturales o antrópicas


F. Escolano-Sánchez

EUIT de Obras Públicas - Universidad Politécnica de Madrid, (España)


M. Bueno-Aguado

Euroconsult, S.A. San Sebastián de los Reyes, Madrid (España)

D. Fernández-Ordóñez

EUIT de Obras Públicas - Universidad Politécnica de Madrid, (España)



Direct foundations with continuous elements, such as slabs, provide more advantages than direct foundations with isolated elements, such as footings, and deep foundations, such as piles, in the case of soil with natural or man-made cavities. The slabs are usually designed by two-dimensional models which show their shape on the plant, on a lineal elastic support, represented by a modulus of soil reaction. Regarding the settlement estimation, the following article compares the Finite Elements Method (FEM) versus the classical Method (CM) to select the modulus of soil reaction used to design foundations slabs in sensitive soils and sites with possible cavities or collapses. This analysis includes one of these cavities in the design to evaluate the risk of fail.



Las cimentaciones directas con elementos continuos «losas», tienen ventajas sobre las cimentaciones directas con elementos aislados «zapatas» y sobre las cimentaciones profundas «pilotes», frente a la presencia de terrenos problemáticos. Las losas se diseñan de forma habitual con modelos bidimensionales que representan su forma en planta, apoyada en un medio elástico y lineal, representado por un módulo de balasto. En el presente artículo se realiza un análisis comparativo, para la estimación de asientos, entre el Método de Elementos Finitos (FEM) y el Método Clásico (MC), para la elección de los módulos de balasto que se utilizan en el diseño de losas de cimentación en terrenos con blandones y cavidades naturales o antrópicas. Este análisis considera el peligro de la presencia de una de estas cavidades dentro de su diseño, de esta forma, el riesgo de fallo puede ser valorado por ambos métodos.


Recibido: 28/06/2013; Aceptado: 20/12/2013; Publicado on-line: 17/04/2015

Citation / Cómo citar este artículo: Escolano-Sánchez, F., Bueno-Aguado, M., Fernández-Ordoñez, D. (2015). The Finite Elements Method (FEM) versus traditional Methods (TM), in the estimation of settlement and modulus of soil reaction for foundation slabs design on soils with natural or man-made cavities. Informes de la Construcción, 67(537): e069, doi:

Keywords: Settlement; modulus of soil reaction; slabs design; active area; finite elements method.

Palabras clave: Asiento; módulo de balasto; losa; zona activa; elementos finitos.

Licencia / License: Salvo indicación contraria, todos los contenidos de la edición electrónica de Informes de la Construcción se distribuyen bajo una licencia de uso y distribución Creative Commons Reconocimiento no Comercial 3.0. España (cc-by-nc).














Currently the structure of the new blocks of houses built in the Urban Action Plans (PAU) in most of the Spanish cities are designed in similar ways.

They are designed as buildings that normally designed as squares that use the entire surface of the block. These buildings are normally of a dimension of less than 100m in plan and are placed at the edges of the block, close to the roads or streets (Figure 1).

Figure 1. Urban design criteria of square blocks. (google).

When the buildings use the whole surface of the block, normally square in plan and only limited by the streets. Buildings are normally used for housing and are usually 6 to 9 stories. In these levels are included one or two underground levels designed for parking space. Central part of the block is normally used for leisure purposes (swimming pools, gardening, sport facilities) Figure 2.

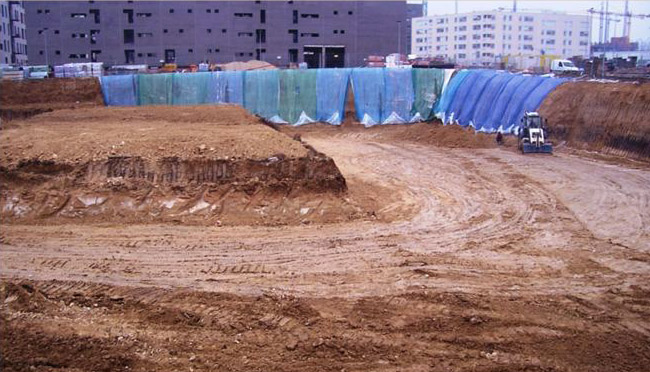

Figure 2.  Excavation of the basement of the building at the perimeter of the block.

The kind of foundations used in these building structures are the following:

  1. Direct foundations with isolated elements.
  2. Direct foundations with continuous elements, slabs or continuous footings.
  3. Deep foundations, piles.

A technical justification that takes into account singular geotechnical features is required for the three kinds of foundations, mentioned above, in the case of problematic soils with soft zones, anthropic soils or cavities.

This article focuses on the foundations slabs, and shows their calculation and design. These calculations also consider the natural features of these soils and the existence of cavities from natural (1) or anthropic origin, such as viajes de agua (historic water gathering galleries) in Madrid or underground cellars in wine growing localities.

It is mainly for the foundations slabs on these problematic soils that a comparative analysis of the settlement and modulus of soil reaction calculation is carried out, although it can also be done in other continuous foundations (2).


The foundation slabs or the beam slatted system are structures which involve in their deflections a ground volume with dimensions of the same order of magnitude as their own width (3).

In areas with natural or man-made cavities and the sinkholes areas the position of the bedrock is located at a depth varying between 15 and 30 m, the clay on the bedrock remains inside the active area of the deflection of the slab.

Slabs and beam slatted systems have an advantage over other shallow foundations, which is the capacity to cover more volume of ground, so that the differences in specific rigidity are averaged in all the active area with a much homogeneous deflection. Besides, they have a better capacity to bridge the cavities from natural or anthropic and the sinkholes areas.

At the present time the most extended calculation procedures for structural design of the elements of continuous foundation are based in the method of the modulus of soil reaction. This method comes from the hypothesis that for the working pressure range the soil responds with settlements directly proportional to the pressure in each point. The coefficient of proportionality is precisely the modulus of soil reaction (4).

Calculation software normally allows variable modulus of soil reaction between points of the slab. Using several modules located in different positions, each one corresponding to one calculation hypothesis is how the modeling of softened areas under the continuous foundation is proposed (5). Therefore, the problem is to determine which ballast coefficients are to be used and how they should be distributed.

Nowadays there is a certain controversy at the time of picking the modulus of soil reaction to be used in a continuous foundation, whether it is on a ground with cavities.

The criterion followed in this article consists in obtaining the modulus of soil reaction from the best approximation possible of the total settlement of the slab. Therefore, it is concluded that the best modulus of soil reaction is the one which most faithfully reproduces the settlement obtained in the geotechnical analysis, in the structure.

Additionally, in order to ease its practical use in the design of these elements, the representative modulus of soil reaction of each area of the slab must be constant. That is to say, the calculation of the slab will be made with two values of the modulus of soil reaction which will only vary according to the area in the different calculi hypothesis.

The estimation of the total settlement in the slab is based in the consideration of the natural ground as a semi elastic-plastic space, limited at a determined depth by a non-deformable stratum (6). The position of this stratum corresponds with the start of the competent substrate, while the deformation area corresponds with the unit of overlying soil and cavities from natural or anthropic.

In a first stage the estimation of the settlements in the slab is made by the finite element method (FEM) (7), with a model that allows analyzing the effect of the presence of softened areas. This method is often out of reach of the foundation recommendations gathered in a building geotechnical study, so from the observations made in this first model, a second method is proposed, which allows obtaining the values in a fast a simple way, with the guarantee of being within the a correct order of magnitude.


By using this method, different geometric situations have been modelised in which the uniform charge is situated on a soil layer which is at the same time supported by a non-deformable layer. A softened area could exist in the core of the soil (7), (8), (9).

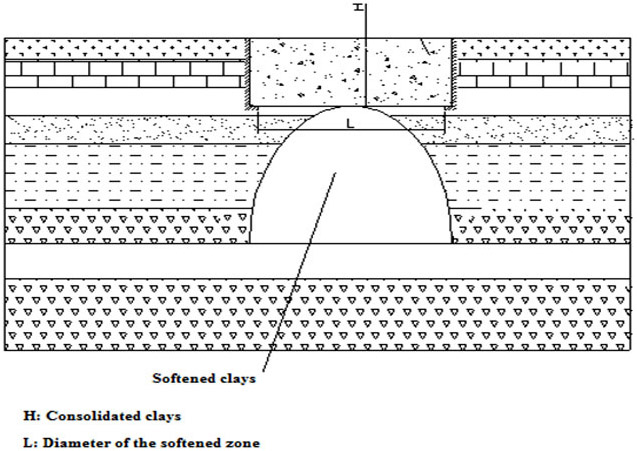

The softened area is represented as a semi-circle of L diameter with H cover. The L and H values have been modified in the different models to obtain a graph representing the variation of the settlements according to these two parameters. The calculation mesh used is of similar form to that shown in the following Figure 3. Other parameters necessary to develop the model are shown on the following Table 1, (10), (11).

Table 1. Calculation parameters.

CALCULATION PARAMETERS (Representative values)
Lithology Apparen specific weight (KN/m3) Cohesion C’ (KN/m2) Friction angle (º’) Deformation modulus (KN/m2) Poisson coefficient (ν)
Non deformable stratum 20,0 600 30 500.000 0,26
Consolidated soil 18,0 60 28 50.000 0,30
Softened soil 18,0 0-1 21 500 0,35
Uniform load 50 KN/m2

The observation of the deformation of these models indicates that the slab settlement has two components. The first one is due the general deformability of the consolidated soil, and the second one is due the presence of the softened area. The area of influence of this second settlement is over the projection of the softened area. These two deformations can be clearly seen in the following graph (Figure 4).

Figure 3. Modelling by finite elements of a load in a clay layer located on a non-deformable stratum. The clays may contain a softened area.

Figure 4. Deflected calculation net.

Other conclusions from the analysis carried out are:

  1. All the deformation of the model is within the soil unit, both consolidated and softened. Deformations in the chalk rock unit are valueless.
  2. The general settlement of the slab outside the projection of the softened soil unit depends on the deformation characteristics of the consolidated soil and its thickness above bedrock (12).

The settlement on softened soil projection area depends on the diameter of the hollow and the thickness of the consolidated soil above the softened. In the following graph (Figure 5) this tendency can be seen in a quantitative manner. It can be observed that as the gap span (L) increases, or diameter of softened area, so does the settlement. In the same way, when the thickness of cover (H) increases, the settlement decreases.

Figure 5. Maximum settlement by the finite element metothod.

In the previous graph (Figure 5), it was observed that for a fixed cover H thickness, the settlements increase on increasing the diameter of the softened area. The dip of the curve decreases for the greatest H values.

On the other hand, for small diameters, the greater part of the settlement is due to the thickness of consolidated clays and thus the settlements are greater for greater covers.


These previous observations indicate that the total settlement of the slab can be obtained as the sum of two components. The separation of these two deformations permits analysis of each one in an independent manner through simple analytical formula (13), (14). The two mentioned deformations are:

  1. The settlement due to a uniform load on the consolidated unit soil situated over a non-deformable stratum.
  2. The settlement due to bending and shear strain of the covering of consolidated soil which bridge the softened clays considered as a simply supported beam.

For this second deformation the settlement will be based on the thickness of the consolidated soil over the softened soil and on the diameter of these.

4.1. Estimation of the settlings without softened areas

The determination of the settlement due to a uniform load of width B, on a consolidated soil unit of height H1, which at the same time is located over a non-deformable stratum, is a problem widely treated by the bibliography.

Furthermore, for a stress range usually within the elastic zone of the constitutive equations of the materials, and for slab width B, equal or higher than the height of the deformable stratum H1, the value obtained from the elastic modulus without lateral deformation may be considered representative enough. That is to say:


σ = Uniform overload applied.

E = Deformation modulus.

υ = Poisson coefficient.

ρ = Coefficient considering the lateral deformation.

The ρ coefficient is adjusted from the finite element method results, so that when the diameter of the softened area is mulled, the settlements of both methods coincide. The value that best adjusts to this condition is ρ = 1.2.

From this settlement, the calculation modulus of soil reaction for a slab supported on a unit of consolidated soil can be obtained, as far as there are no softened areas. This module will be called K1. Its value is represented in the Figure 6.

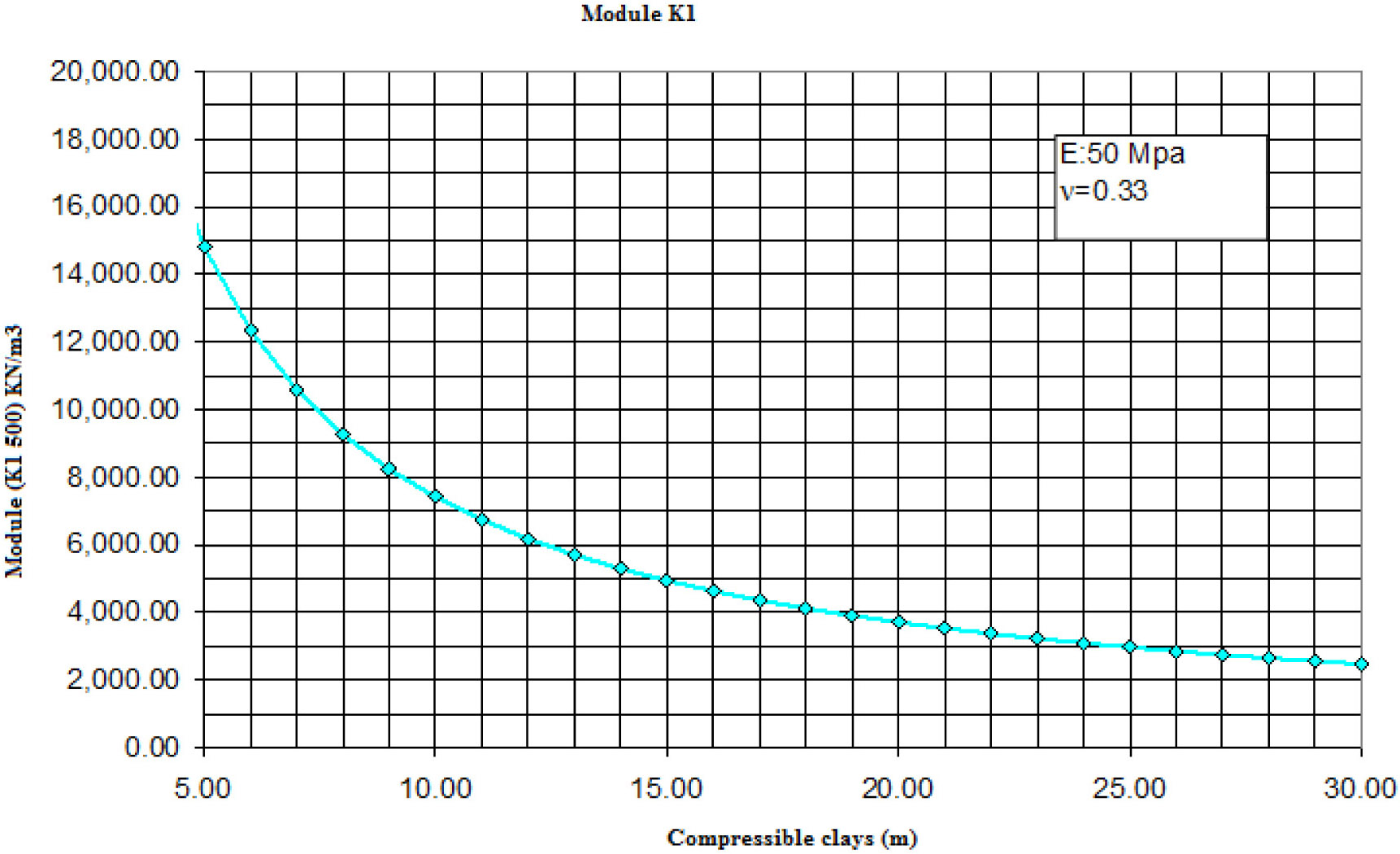

Figure 6. Modulus of soil reaction for slabs on clayish soil.

Giving that there is a lineal relation between the deformation and modulus of soil reaction, for any other deformation modulus (E) of the consolidated soil stratum, the value K1 can be obtained through the expression:

4.2. Estimation of the settlements in presence of softened areas

The estimation of the settlement of the slab in the softened soil area is determined considering the consolidated soil as a beam fixed on both ends, supporting a uniform load.

The beam thickness is the H value or the consolidated soil over the softened area. While the beam span depends on the diameter of the softened zone. Figure 7 shows this calculation model.

Figure 7. Modelling calculation of the deformations over cavities.

The beam has a deformation modulus E, same as the one in the consolidated soil and inertia I equal to:

The settlement of this beam due to the bending and the shear strain is:

Where σ represents the uniform work overload.

The modulus of soil reaction may be obtained from this relation, as the quotient between the work overload and the total settlement

Figure 8 shows the modulus of soil reaction calculated from this expression, for different values of H and L.

Figure 8. Modelling calculation of the deformations over cavities.

As it happened with the K1 module, the K2 module is proportional to E, therefore for another deformation modulus is immediately obtained.

The total settlement in the softened soil area will be the addition of settlement S1 and S2, so the modulus of soil reaction in the softened soil area is:

And operating we get,

This corresponds to the addition of two serial springs.


The validation of the analytical method proposed is made comparing its results with the results of the finite element model (15), (16). Figure 9 shows the results of both methods in the coordinate axes H and L previously defined.

Figure 9. Comparison of the analytical method and the FEM.

The results indicate a good overlap between both methods. Particularly, the following matters are observed.

When there is no softened area, that is to say, when L = 0, both methods show almost the same results.

Both methods show the same tendency in the settlement growth. This means, for a constant value of H, the settlement increase when L increases as well. At the same time, the growth speed decreases when H increases.

The maximum differences between these two methods occur when the span (L) increases. These differences are due to the influence of the shape of the cavities on FEM.

The estimated settlements of the analytical method are the same, from a practical application point of view, or higher to the ones calculated with the FEM.

In view of these results it can be concluded that the analytical method described obtains, chiefly in practical situations, values similar to those of Finite Elements Method.

Where these methods are not the same, the analytical method gives higher values of the modulus of soil reaction so that it gives way to stress in the foundation elements also higher and therefore it is a method which tends to decrease the risk of fracture of the slab or strap footings


The distribution of the K1 and Kr modules at the base of the slab will determine its height and reinforcement (17).

The geotechnical side investigation indicates an approximate distribution of the softened areas; however, although it is possible to know their size and existence, it is very difficult to find all of the softened areas with certainty. Additionally, there is some uncertainty about the shape and direction in which they develop.

The way to tackle these uncertainties consists in increasing the number of boreholes, and complementing the surveys and penetration essays with geophysical techniques. Nevertheless, in some cases it is better to increase the calculation stress and over-dimension the foundation element, thus overcoming the recognition uncertainty.

For the design of foundation slabs it is necessary to determine the rim, the base reinforcement, upper and lower, and the upper and lower reinforcement of each set of pillars. The considerations for other types of continuous foundations are similar.

In relatively symmetrical slabs and with a homogeneous stress distribution it is very common to determine the worst stress in a point and extend its reinforcement to all the pillars alignments.

With the present method two modules of soil reaction are defined, the worst stress design of the slab must be calculated from several distribution hypotheses of the modules. The designer has to determine which the worst positions of this modules combination are for the structure. This system can also be used for other kind of structures like underground parking structures (18).

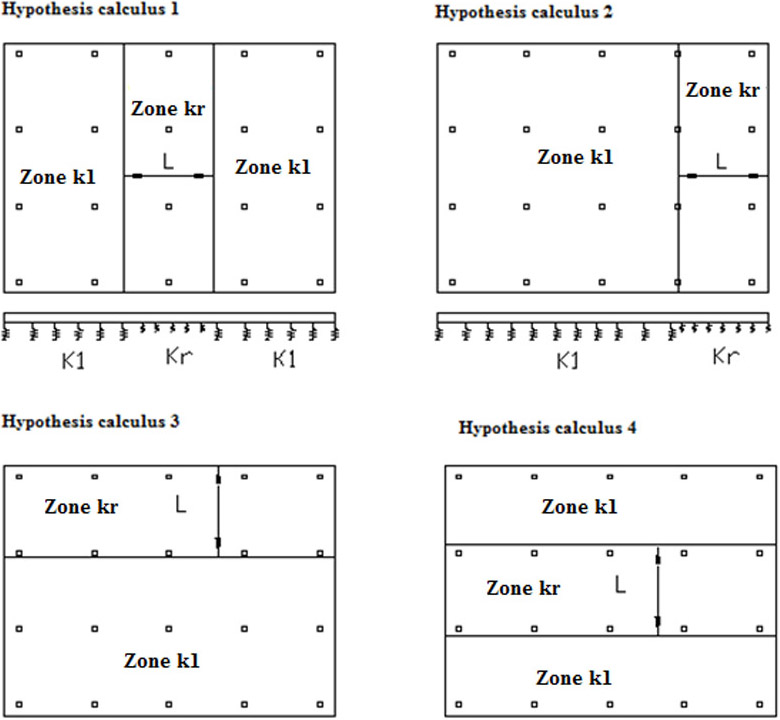

As a guideline, the following Figure 10 shows a distribution of modulus soil reaction in four calculation hypotheses. These hypotheses should the minimum ones to be taken into account when there is no clear idea of where softened areas or cavities could appear.

Figure 10. Distribution of modulus of soil reaction in slabs.

If further side investigation is carried on, it should be placed in the most structure sensitive areas to deflection, so that the effort is justified by foundation element optimization.


This article shows a procedure of design of continuous foundations in soils with natural or anthropic cavities, located under this foundation.

The design is calculated by the modulus of soil reaction method traditionally used for these elements. The slab rests on two different modulus of soil reaction whose position will vary according to the cavities previously detected. In case of uncertainty regarding the location of these cavities, other hypothesis will be carried out to distribute these modules.

The value of the modulus of soil reaction depends on the position of the bedrock, the cavities diameter and the covering of competent soil above these cavities.
